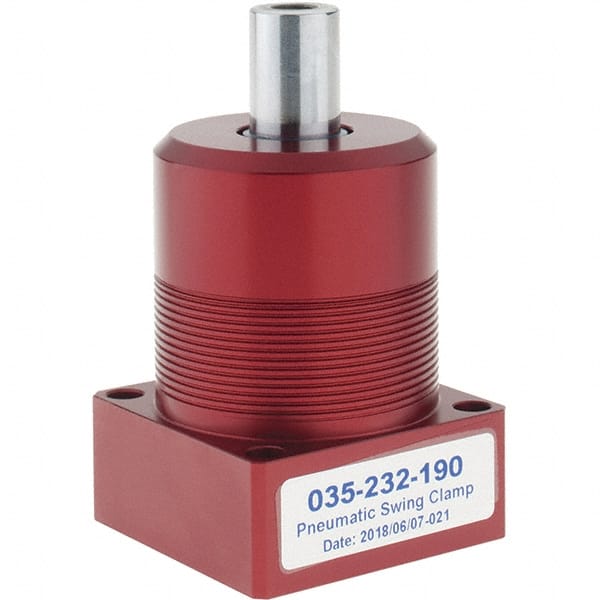

Destaco 40 Lb Clamping Force, Right Hand Swing, 26.92mm Total Stroke, Double-Acting Pneumatic Swing Clamp 10-32 Port, 70.87mm Body Length X 32mm Body Width, 0.99 Cu In, 100 Max Psi 035-232-190 - 44003515
Unit of Measure

Technical Specs

Brands

 N/A Destaco

Minimum Order

 N/A 1

Number of Packages

 N/A 1

Manufacturer Part Number

 N/A 035-232-190

UNSPSC Code

 N/A 23153000

Clamping Force

 N/A 40 lb

Total Stroke

 N/A 26.92 mm

Swing Clamp Port Size

 N/A 10-32

Thread Type

 N/A National Pipe Thread (NPT)

Swing Direction

 N/A Right

Maximum Operating Pressure

 N/A 100 psi

Operating Volume

 N/A 0.99 in³

Body Dimensions

Body Length

 N/A 70.87 mm

Body Width

 N/A 32 mm
